Arkimede® 24 - low profile - self levelling
Pedestal System & Risers - 24mm to 42mm (0.95" to 1.65")
HEIGHT RANGES
Arkimede® 24 - self-levelling
Pedestal System & Risers - 24mm to 42mm
(0.95" to 1.65")
Each pedestal, with auto adjustment for slopes from 0 to 5%, comprises a base plate, 9mm height extender ring, threaded adjustment collar and self-levelling support head. Adjustable from 24mm to 42mm (0.95" to 1.65") as standard.
Base laying surface: 314cm² (49 sq.in). Head diameter: 120mm (4¾").
Available versions:

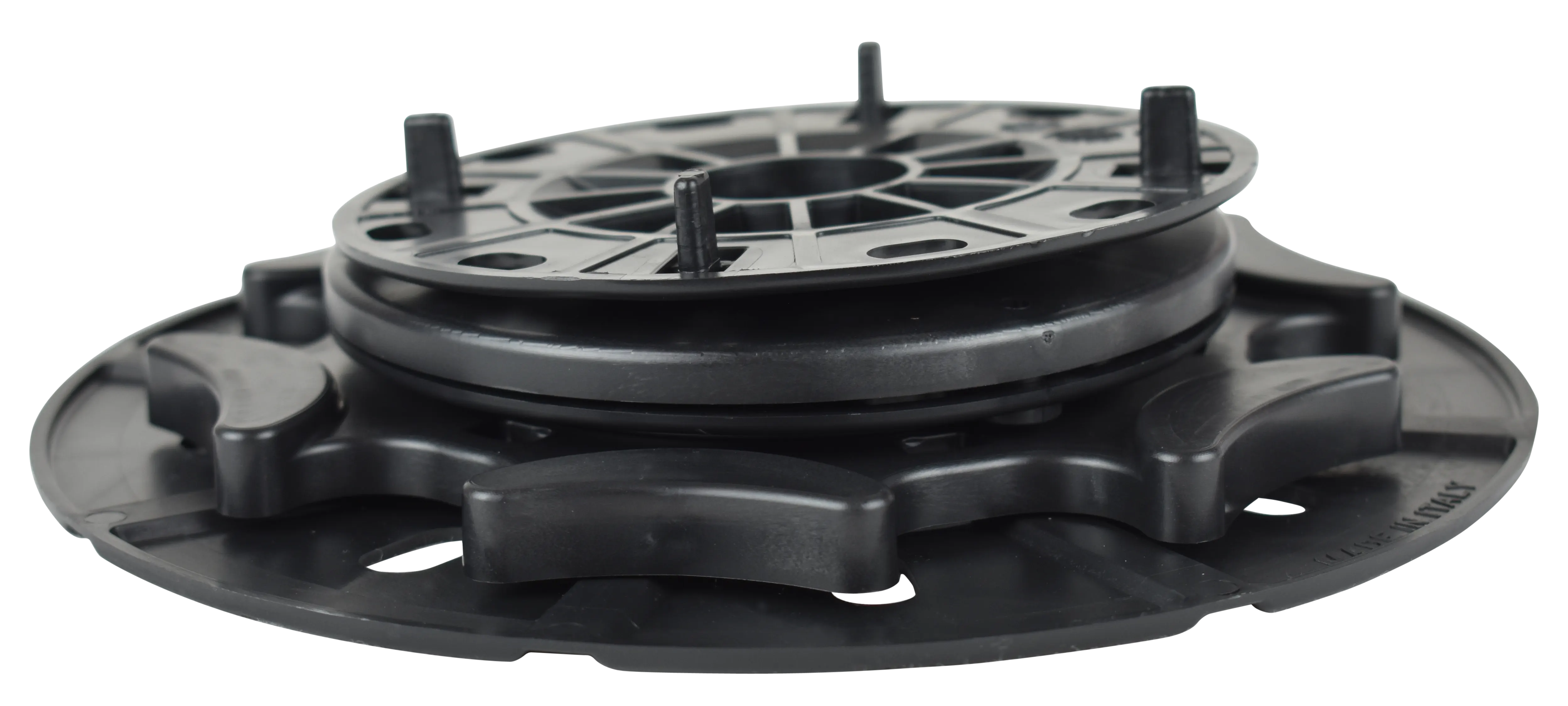

- paver support with 4 spacer tabs of 2mm (⁵⁄₆₄") thickness
- paver support with 4 spacer tabs of 4mm (⁵⁄₃₂") thickness

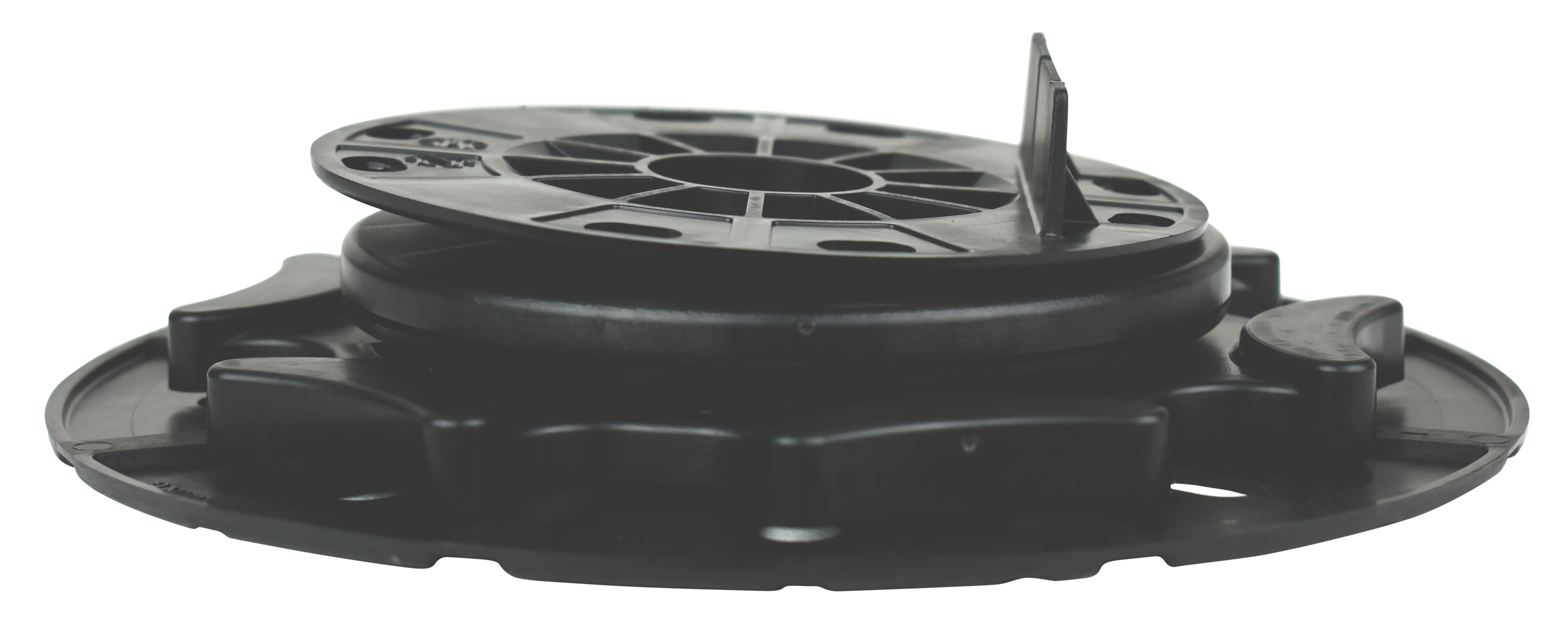

- joist support with 1 tab for decking and flooring
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
Download Legend
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-1193/4A2M | Arkimede 41 - Paving Spacer tabs 2mm (⁵⁄₆₄'') | 41mm to 66mm (1⅝" - 2⅝'') | 30 pcs. | 1,200 pcs. | 1 pc. |
| TER09-1193/4A4M | Arkimede 41 - Paving Spacer tabs 4mm (⁵⁄₃₂'') | 41mm to 66mm (1⅝" - 2⅝'') | 30 pcs. | 1,200 pcs. | 1 pc. |
| TER09-1193/1A | Arkimede 41 - Decking | 41mm to 66mm (1⅝" - 2⅝'') | 30 pcs. | 1,200 pcs. | 1 pc. |
Accessories
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-1143/P25 | 01 Arkimedes 25mm (1") Height Extender | 25mm (1") | 30 pcs. | 2,700 pcs. | 1 pc. |
| TER09-1143/P50 | 02 Arkimedes 50mm (2") Height Extender | 50mm (2") | 30 pcs. | 1,680 pcs. | 1 pc. |
| TER09-1143/P100 | 03 Arkimedes 100mm (4") Height Extender | 100mm (4") | 30 pcs. | 1,200 pcs. | 1 pc. |
| TER09-1143/G | 04 Arkimedes - Acoustic Rubber Shim for paving | ø 120mm x 2mm (ø 4¾" x ⁵⁄₆₄") | 180 pcs. | 16,200 pcs. | 1 pc. |
| TER09-1144/T | 05 Anti-noise Rubber Base Pad - round | ø 200mm x 3mm (ø 8" x ⅛") | 30 pcs. | 10,800 pcs. | 1 pc. |
| TER09-1144/P | 06 Anti-noise Rubber Base Pad - square | 200mm x 200mm x 3mm (8" x 8" x ⅛") | 80 pcs. | 9,600 pcs. | 1 pc. |
